Pro-Drive Fasteners®

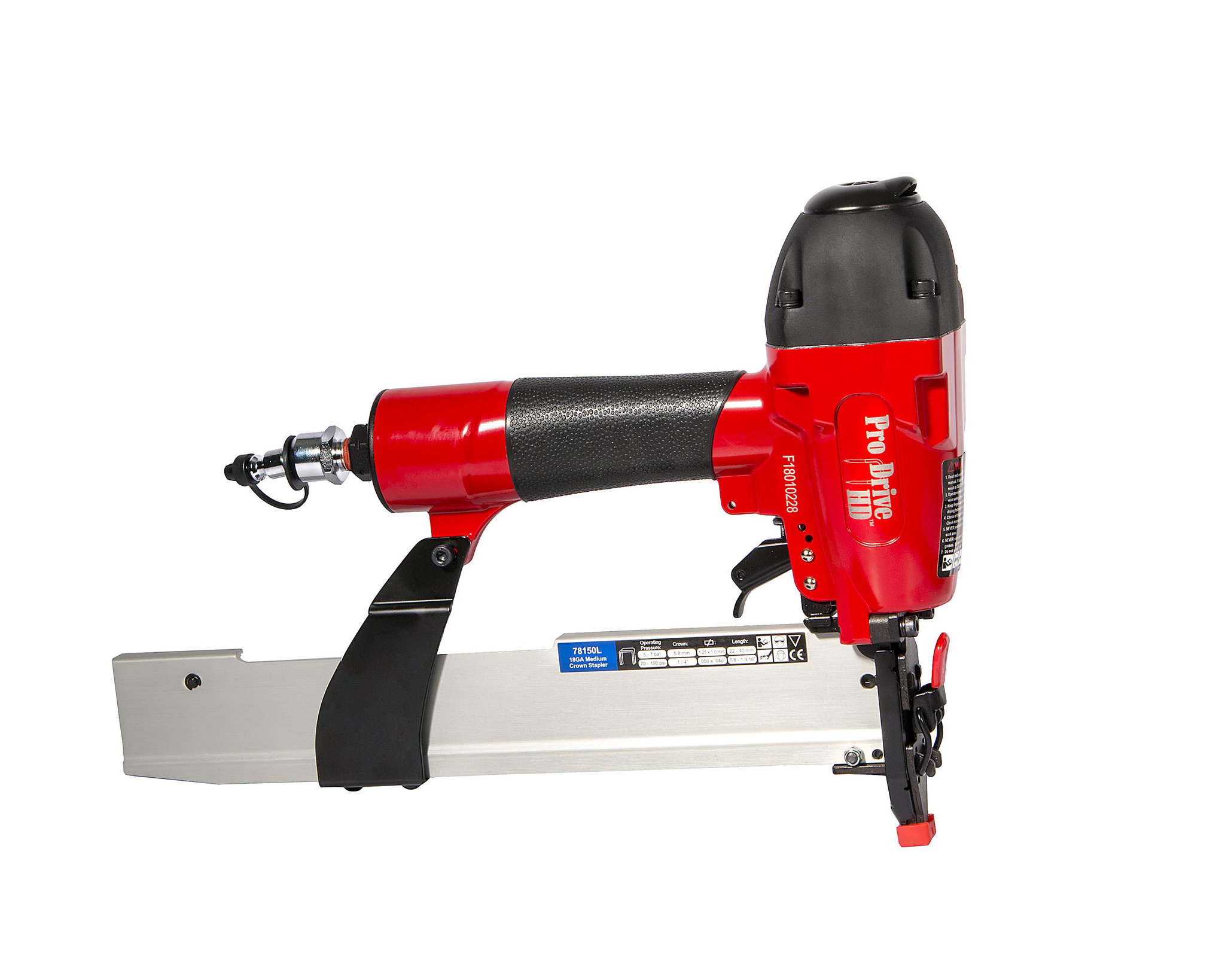

18 GA Underlayment Stapler Tool

18 GA Underlayment Stapler Tool

18 GA Heavy Duty Underlayment Pneumatic Stapler. Operates at 75-100 PSI of pressure. Dimensions of 14"L x 2.5"W x 9.5"H and weighs 2.8 lbs.

  • Drives 18 GA, narrow-crown staples, 1/2" to 1 5/8" lengths (12mm to 40mm)

Applications:

  • Subflooring
  • Molding trim
  • Lattice
  • Sheathing
  • Underlayment
  • Crating
  • Furniture frames
  • Walls
  • Cabinets
  • Trim
  • Light wood assembly

Features:

  • EXTRA capacity for fewer reloads
  • Compatible for use with   90, 1800 series staples and L wire series staples and many other 1/4" Crown 18GA staples
  • Built for professional use but DYI friendly
  • Top load magazine
  • Large 38mm housing provides force to exceed fastening requirements
  • Single pull or bumper fire trigger
  • Open nose design for quick and easy clearing of jams
  • Non-marring tip protects the material surface
  • Compatible with SERIES 90, 1800 and L wire series staples and many other 1/4" Crown 18GA staples

1 Year Warranty

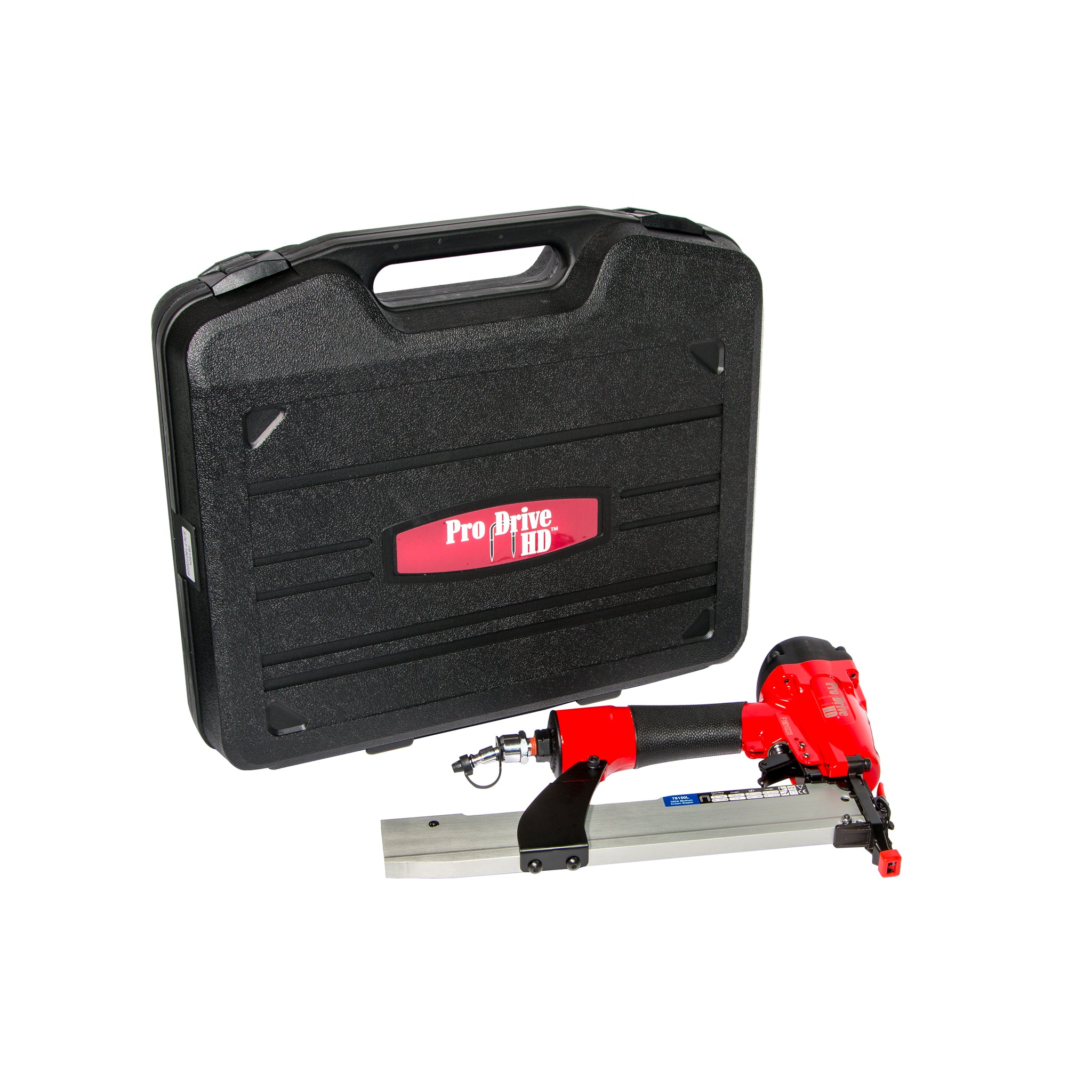

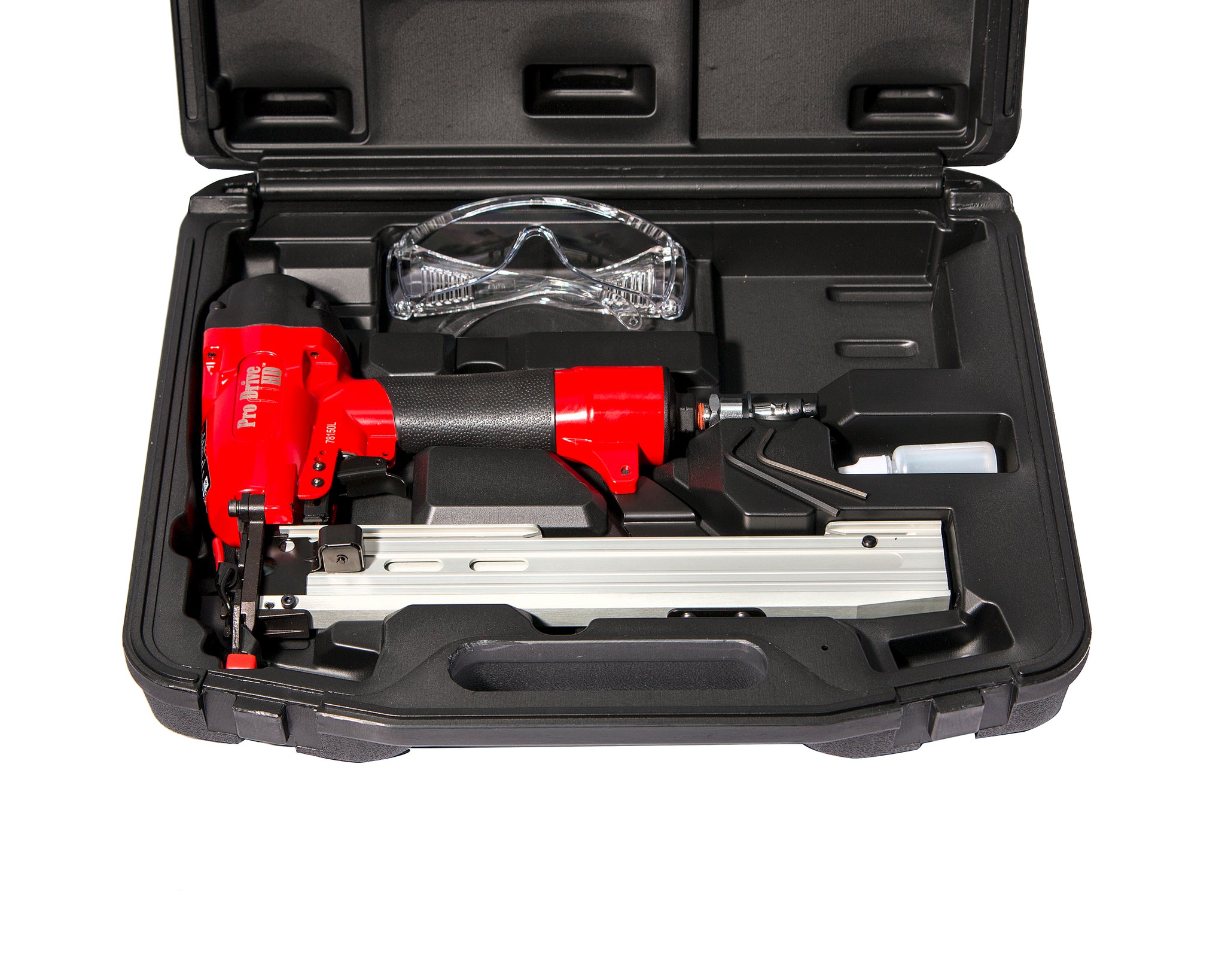

Free Carrying Case and Safety Glasses

Swivel Air Connection

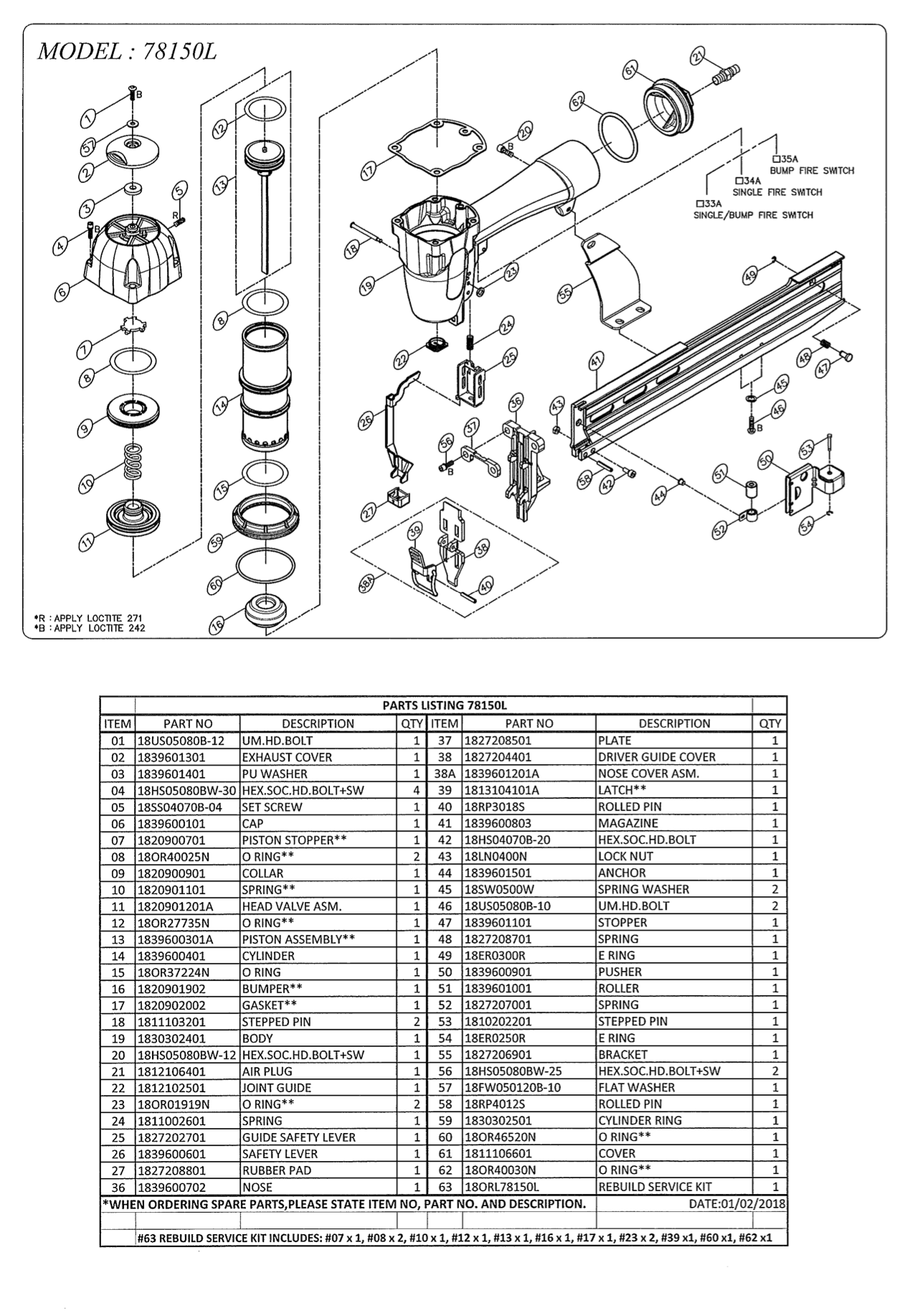

Download Manual and Product Information HERE
